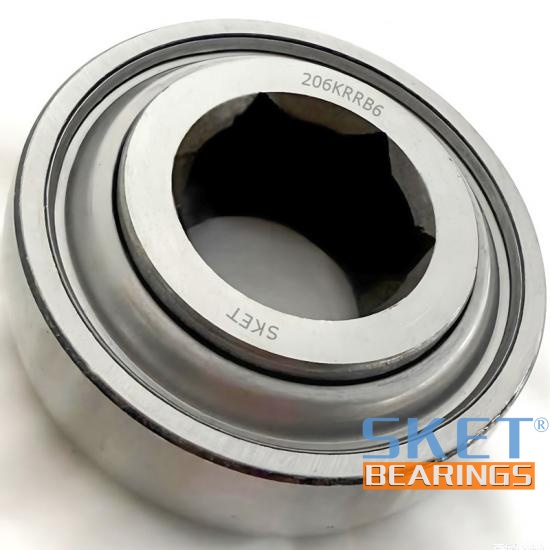

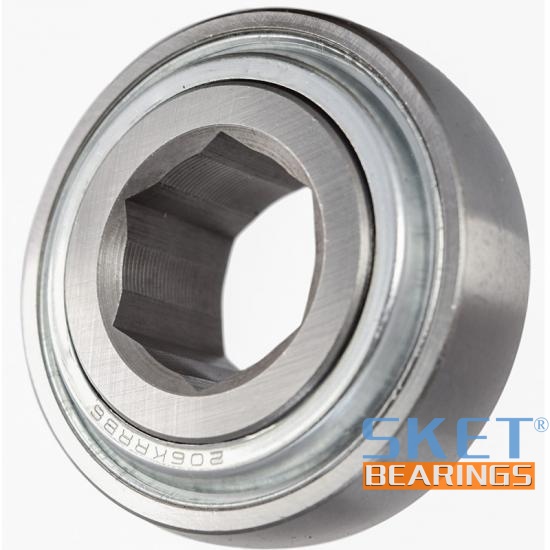

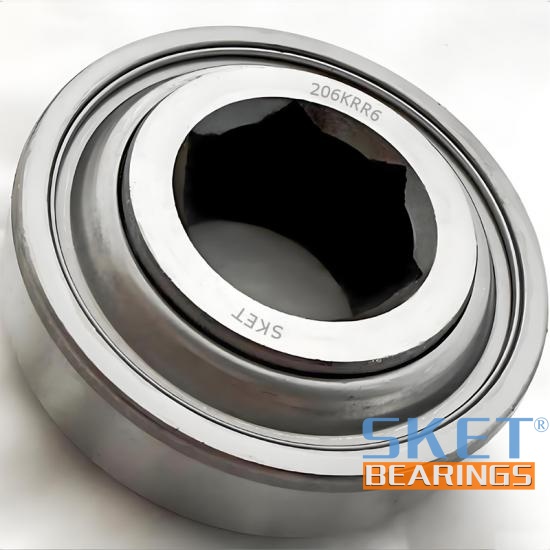

206KRR6 / 206KRRB6 Hex Bore Agricultural Bearing Engineered for Harsh Conditions
The SKET 206KRR6 / 206KRRB6 agricultural bearing combines a triple-lip shroud seal with a hex bore for superior torque transmission and contamination protection.
- Compared to standard dual-lip bearings, SKET’s three-lip design extends bearing life by up to 30% in abrasive soil conditions.
- Advanced heat-treated races and precision steel balls maintain stability under reversing loads and high radial stress, outperforming many conventional aftermarket alternatives.
- Reduces unplanned maintenance and equipment downtime, directly lowering total cost of ownership for farms and distributors.
Key Features of 206KRR6 / 206KRRB6 Three-Lip Shroud Seal Hex Bore Bearings
Triple-Lip Shroud Seal Protection
- Blocks dirt, crop residue, and moisture more effectively than standard dual-lip designs
- Shroud protects seals from direct impact, enhancing field durability
- Extends relubrication intervals, reducing labor and maintenance costs
Hex Bore Design for Secure Shaft Engagement
- Eliminates inner ring creep under reversing torque
- No locknuts required—simplifies installation
- Reliable performance in shock-heavy agricultural operations
Heavy-Duty Internal Construction
- Heat-treated races withstand high-impact loads
- Precision ground steel balls reduce friction and wear
- Pre-greased with agricultural-grade lubricant for wide temperature range
206KRR6 / 206KRRB6 Bearing Design Considerations for Engineers
- Handles high radial loads from soil engagement and cultivation
- Maintains consistent sealing under vibration and misalignment
- Fully OEM interchangeable, minimizing downtime during seasonal replacement
Trusted by farms and distributors across North America and Europe. SKET bearings have been field-tested in challenging conditions, proving reliability where uptime is critical.
OEM & Cross Reference Numbers for 206KRR6 / 206KRRB6 Bearings
206KRR6 Interchange
- FAFNIR: 206KRR6
- BCA: HPC100GP
- Link-Belt: 16KB206N
- NTN: 1AH06-1
- John Deere: JD9338
206KRRB6 Interchange
- John Deere: JD9313, AN220534
- Case IH: 211587C91
- Gehl: 053719
- Hesston: 7714603
- Kewanee: A5636
- Long: 9-90325
- New Holland: 135241
SKET bearings are ISO and ABMA compliant, designed as direct OEM replacements—no modification required.
206KRR6 / 206KRRB6 Hex Bore Bearing Product Specifications
| Parameter | 206KRR6 | 206KRRB6 |
|---|---|---|
| Bearing Type | Agricultural Insert Ball Bearing | Agricultural Insert Ball Bearing |
| Brand | SKET | SKET |
| Bore Type | Hex Bore | Hex Bore |
| Bore Size | 1-1/8 inch (Hex) | 1-1/8 inch (Hex) |
| Outside Diameter (OD) | Standard 206 Series | Standard 206 Series |
| Inner Ring Width | Standard 206 Insert | Standard 206 Insert |
| Seal Design | Three-Lip Shroud Seal | Three-Lip Shroud Seal |
| Sealing Material | Nitrile Rubber + Steel Shroud | Nitrile Rubber + Steel Shroud |
| Lubrication | Pre-greased (Agri-grade grease) | Pre-greased (Agri-grade grease) |
| Relubrication Option | Optional (per request) | Optional (per request) |
| Housing Compatibility | Standard 206 Series Housings | Standard 206 Series Housings |
| Load Direction | Radial / Moderate Axial | Radial / Moderate Axial |
| Typical Applications | Disc Harrows, Seeders, Cultivators | Balers, Tillage & Hay Equipment |
| OEM Interchange | Yes | Yes |
| Replacement Market | OEM & Aftermarket | OEM & Aftermarket |
All SKET bearings are manufactured in a modern facility with automated quality control to ensure consistent performance and dimensional accuracy. Technical drawings and load ratings available upon request.
Typical Applications for 206KRR6 / 206KRRB6 Hex Bore Agricultural Bearings
- Disc Harrows
- Field Cultivators
- Seeders & Planters
- Balers & Hay Equipment
- General Tillage Machinery
Technical Overview of SKET 206KRR6 / 206KRRB6 Bearings
- Bearing Type: Agricultural Insert Ball Bearing
- Bore Type: Hex Bore
- Seal Design: Three-Lip Shroud Seal
- Lubrication: Pre-greased (custom grease options available)
- Interchangeability: OEM Direct Replacement
Why Choose SKET 206KRR6 / 206KRRB6 Agricultural Bearings
- Used by Leading Agricultural OEMs in North America & Europe: SKET is trusted by top OEMs, ensuring you’re getting a product that meets the highest industry standards.
- Certified Quality: Our bearings comply with ISO 9001:2015 quality standards and meet RoHS/REACH directives for environmental and safety regulations.
- Bulk Orders: Special packaging for bulk industrial purchases, perfect for seasonal demand.
- Individual Packaging: Bearings can be boxed for distribution, ready for your retail or reseller needs.
- OEM Solutions: Custom labeling, packaging, and integration for OEMs.
- Flexible Ordering: We offer mixed orders across various models, helping you maintain optimal inventory levels for your business.
Whether you’re placing a bulk order, seeking OEM solutions, or need aftermarket replacements, our team is ready to help. Contact SKET Bearings today for more information, a quote, or to discuss your specific requirements.
