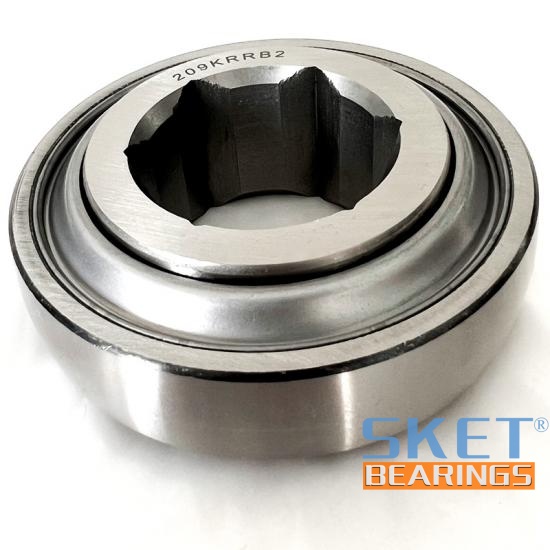

The 209KRRB2 Agricultural Bearing is designed to deliver stable performance under heavy loads, vibration, contamination, and misalignment commonly found in modern agricultural machinery. Its spherical outer diameter (OD) allows self-alignment within housings, reducing stress and extending service life.
Key Features
- Spherical OD Design – Supports self-alignment and compensates for shaft deflection.
- Enhanced Sealing System – Double-lip contact seals with trash guard protection.
- High Load Capacity – Optimized internal geometry for radial and axial loads.
- Corrosion Resistance – Heat-treated bearing steel for humid and chemical environments.
- Precision Manufacturing – Controlled tolerances for smooth rotation and reduced vibration.
209KRRB2 Agricultural Bearing Technical Specifications
| Item | Specification |
|---|---|
| Bearing Type | Deep Groove Ball Bearing |
| Bore Size | 1-1/2" (38.10 mm) Round Bore |
| Outside Diameter (OD) | 85 mm (Spherical) |
| Width | 19 mm |
| Dynamic Load Rating (C) | 35.1 kN |
| Static Load Rating (C0) | 23.2 kN |
| Seal Type | Double-Lip Contact Seals + Trash Guard |
| Seal Material | NBR (Standard), FKM Optional |
| Operating Temperature | -30°C to +110°C |
| Standards | ABMA / ISO |
Cross Reference & Interchange
This bearing is commonly supplied as a direct interchange for:
- 209KRRB2
- HPS108GPH
- 24K209N
- 2AH09-1 1/2 Special Agricultural Bearing
209KRRB2 Agricultural Bearing Typical Applications
- Disc Harrows
- Tillage Equipment
- Seeders & Planters
-
Harvesting Machinery
Why Buyers Choose 209KRRB2 from SKET
✔ Stable quality across batches✔ Strict dimensional and noise control
✔ Sealing performance validated for field conditions
✔ Flexible MOQ for distributors & OEM buyers
✔ Reliable global shipping schedules
SKET agricultural bearing warehouse storage
Request a Quote
Need pricing or availability for 209KRRB2, HPS108GPH, 24K209N, or 2AH09-1 1/2?
Frequently Asked Questions
Q1: What does the “B2” designation indicate?
A: It typically refers to the spherical outer diameter configuration combined with enhanced sealing suitable for agricultural housings.
Q2: Is 209KRRB2 interchangeable with HPS108GPH or 24K209N?
A: Yes, these are widely recognized cross references. Final verification is recommended for critical OEM applications.
Q3: Can alternative seal materials be supplied?
A: Yes. FKM seals are available for higher temperature or chemical exposure environments.
Q4: Do you provide samples for validation?
A: Samples can be arranged based on project requirements and logistics conditions.
Q5: What industries commonly purchase this bearing?
A: Agricultural equipment manufacturers, spare parts distributors, repair workshops, and machinery maintenance providers.
