The Agri Bearing 200 Series is a range of agricultural insert bearings developed for farm machinery applications requiring reliable performance, contamination protection, and consistent replacement compatibility.
Designed for demanding agricultural environments, these bearings are widely used in:
- Disc harrows
- Cultivators
- Planters
- Seeders
- Tillage equipment
- Agricultural implements
Unlike standard industrial bearings, agricultural bearings must operate under severe field conditions including soil contamination, moisture, vibration, and impact loads.
The Agri Bearing 200 Series provides a practical solution for:
- Agricultural machinery manufacturers
- Agricultural spare parts distributors
- Bearing wholesalers
- Equipment aftermarket suppliers
Agricultural Bearing Replacement Solution
Reduce Downtime with Reliable Replacement Bearings
For agricultural equipment users, bearing failure during planting or harvesting seasons can directly affect productivity.
The Agri Bearing 200 Series is designed as a replacement solution for existing agricultural machinery applications where customers require:
✔ Stable dimensions
✔ Reliable mounting performance
✔ Consistent quality
✔ Long-term supply availability
Customers can provide:
- Existing bearing number
- OEM part number
- Equipment model
- Bearing photos
Our technical team can assist with replacement identification and model selection.
Why Choose Agri Bearing 200 Series?
1. Designed for Harsh Farm Machinery Conditions
Agricultural bearings operate in environments where contamination and shock loading are common.
Typical challenges include:
| Operating Condition | Bearing Requirement |
|---|---|
| Dust and soil particles | Effective contamination protection |
| Rain and moisture | Reliable sealing performance |
| Uneven field conditions | Shock load capability |
| Long working cycles | Stable lubrication retention |
| Seasonal equipment usage | High reliability |
The Agri Bearing 200 Series is designed to provide dependable operation under these agricultural working conditions.
2. Sealing Protection for Agricultural Applications
Contamination is one of the main causes of agricultural bearing failure.
Depending on the specific model configuration, Agri Bearing 200 Series bearings are available with sealing designs suitable for protecting internal bearing components from:
- Dust
- Soil particles
- Water splash
- Agricultural debris
Effective sealing helps:
- Maintain lubrication performance
- Reduce contamination-related damage
- Extend maintenance intervals
3. Reliable Shaft Locking Designs
Proper shaft fixation is critical for agricultural machinery because vibration and impact loads may cause bearing movement.
Common configurations include:
Set Screw Locking
Advantages:
- Simple installation
- Easy replacement
- Suitable for many agricultural machinery applications
Extended Inner Ring Design
Benefits:
- Improved shaft support
- Better mounting stability
- Reduced movement during operation
Different models may have different mounting configurations. Customers should confirm the bearing model before ordering.
4. Load Performance for Agricultural Equipment
The Agri Bearing 200 Series provides reliable load capability for various agricultural applications.
Technical range:
| Parameter | Specification |
|---|---|
| Dynamic Load Rating | 9.6 – 29.6 kN |
| Static Load Rating | 4.6 – 18.2 kN |
| Bore Range | 13.081 – 40 mm |
| Outer Diameter Range | 40 – 80 mm |
For higher load applications, models such as 208KRR2 agricultural bearing provide increased load capacity.

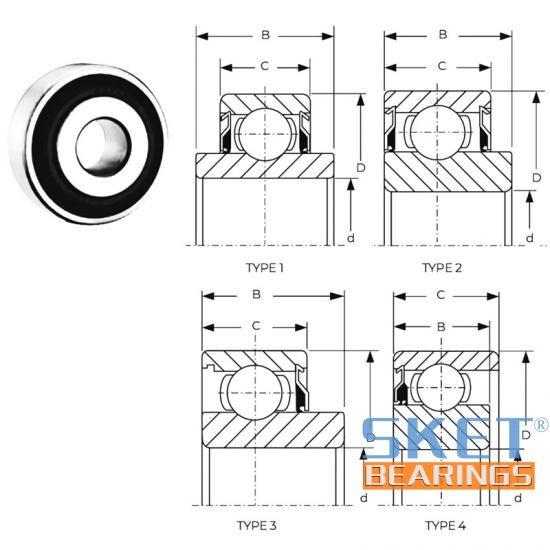

Agri Bearing 200 Series Product Range
| Bearing.No. | Type | Dimensions(in./mm) | Load.Ratings |
Weight (kg) |
||||
| d | D | C | B | Dynamic | Static | |||
| 203KR2 | 3 | 0.6253 | 1.5748 | 0.4724 | 0.5512 | 9.6 | 4.6 | 0.082 |
| 15.883 | 40.000 | 12.000 | 14.000 | |||||
| 203KRR5 | 1 | 0.515 | 1.5748 | 0.4724 | 0.72 | 9.6 | 4.6 | 0.1 |
| 13.081 | 40 | 12 | 18.288 | |||||
| 203KRR7 | 1 | 0.6693 | 1.5748 | 0.4724 | 0.654 | 9.6 | 4.6 | 0.082 |
| 17 | 40 | 12 | 16.612 | |||||
| 204KRR3 | 1 | 0.7874 | 1.8504 | 0.5512 | 0.699 | 12.8 | 6.6 | 0.125 |
| 20 | 47 | 14 | 17.755 | |||||
| 204KRD4 | 2 | 0.63 | 1.8504 | 0.5512 | 0.686 | 12.8 | 6.6 | 0.164 |
| 16.002 | 47 | 14 | 17.42 | |||||
| 204KRR14 | 1 | 0.6299 | 1.8504 | 0.5906 | 0.72 | 12.8 | 6.6 | 0.175 |
| 16 | 47 | 15 | 18.288 | |||||
| 205KR3 | 4 | 0.75 | 2.0472 | 0.7 | 0.64 | 14 | 7.85 | 0.189 |
| 19.05 | 52 | 17.78 | 16.256 | |||||
| 206KRR8 | 1 | 1.1811 | 2.4409 | 0.6299 | 0.9449 | 19.42 | 11.3 | 0.276 |
| 30 | 62 | 16 | 24 | |||||
| 207KRR14 | 1 | 1.253 | 2.8346 | 0.6693 | 0.9843 | 25.64 | 15.3 | 0.372 |
| 31.826 | 72 | 17 | 25 | |||||
| 207KRR | 1 | 1.378 | 2.8346 | 0.6693 | 0.9843 | 25.64 | 15.3 | 0.359 |
| 35 | 72 | 17 | 25 | |||||
| 208KRR2 | 1 | 1.5748 | 3.1496 | 0.8268 | 1.063 | 29.6 | 18.2 | 0.53 |
| 40 | 80 | 21 | 27 | |||||
Featured Replacement Models
208KRR2 Agricultural Bearing
The 208KRR2 bearing is a heavy-duty agricultural insert bearing designed for applications requiring higher load capacity.
Specifications:
- Bore: 40 mm (1-9/16")
- Outer diameter: 80 mm
- Width: 27 mm
- Dynamic load rating: 29.6 kN
- Static load rating: 18.2 kN
Common applications:
- Heavy disc harrows
- Tillage equipment
- Agricultural machinery requiring robust bearing support
207KRR Agricultural Bearing
The 207KRR bearing is commonly selected for agricultural equipment requiring a balance between load capacity and installation flexibility.
Applications:
- Cultivators
- Seeders
- Farm machinery replacement
205KR3 Agricultural Bearing
The 205KR3 bearing provides a reliable solution for medium-duty agricultural machinery.
Applications:
- Planters
- Agricultural implements
- Replacement maintenance programs
Application Areas
Disc Harrow Bearings
Disc harrow bearings experience:
- Continuous rotation
- High vibration
- Soil contamination
- Shock loading
The Agri Bearing 200 Series provides a reliable replacement option for disc blade assemblies and tillage machinery.
Planter and Seeder Bearings
Reliable bearing performance supports:
- Accurate operation
- Reduced downtime
- Seasonal productivity
Cultivation Equipment Bearings
Common applications include:
- Cultivators
- Rotary tillers
- Farm implements
Quality Control and Manufacturing Reliability
To ensure consistent product performance, Agri Bearing 200 Series products are controlled through inspection procedures including:
Manufacturing Inspection
- Incoming material inspection
- Dimensional verification
- Raceway surface inspection
- Rotation testing
- Seal inspection
- Final quality inspection
Quality Documentation Support
Available according to customer requirements:
- Product specifications
- Inspection reports
- Batch traceability records
Supply Support for Global Customers
For Agricultural OEM Manufacturers
We support OEM customers with:
✔ Stable production supply
✔ Consistent product specifications
✔ Technical application support
✔ Customized packaging solutions
For Bearing Distributors and Importers
The Agri Bearing 200 Series is suitable for:
- Agricultural spare parts distribution
- Wholesale bearing supply
- Aftermarket replacement programs
Purchasing support includes:
✔ Mixed model orders
✔ Bulk purchasing
✔ OEM labeling
✔ Export packaging
Purchasing Information
| Item | Support |
|---|---|
| Sample Order | Available for evaluation |
| MOQ | Based on model and quantity |
| Packaging | Standard export or customized packaging |
| OEM Service | Available |
| Technical Support | Bearing selection and replacement matching |
Frequently Asked Questions
Can this bearing replace my existing agricultural bearing?
Yes. Provide your current bearing number, equipment model, or bearing photo. We can assist with replacement matching.
Can I order multiple bearing models together?
Yes. Mixed model orders are available for distributors requiring different agricultural bearing sizes.
Do you supply OEM or private label bearings?
Yes. Customized packaging and private label solutions are available based on customer requirements.
Can I request samples before bulk purchasing?
Yes. Samples can be provided for product evaluation and application testing.
Get Agri Bearing 200 Series Supply Support
Looking for a reliable supplier of Agricultural Bearing 200 Series replacement solutions?
Contact us for:
✔ Replacement bearing matching
✔ Distributor pricing
✔ OEM supply programs
✔ Sample evaluation
✔ Technical support
