Agri Bearing 200 Series-2

The Agri Bearing 200 Series-2 is a range of heavy-duty agricultural insert bearings designed for farm machinery applications where bearings are exposed to dust, soil, moisture, vibration, and impact loads.

These agricultural bearings are developed for equipment manufacturers, agricultural machinery distributors, and aftermarket suppliers requiring reliable replacement solutions for:

• Disc harrows
• Cultivators
• Seeders
• Planters
• Tillage equipment
• Agricultural implements

The series includes commonly used agricultural bearing models:

• 202RRE
• 204RR8
• 205GP
• 205DDS3/4
• 206KRP4
• 208NPPB5

For global agricultural equipment customers, selecting the right bearing is not only about dimensions. Reliable operation also depends on:

• Correct bearing matching
• Suitable sealing design
• Load capacity
• Stable supply availability

The Agri Bearing 200 Series-2 provides a practical solution for customers looking for dependable agricultural bearing replacements.

Key Benefits of Agri Bearing 200 Series-2

Designed for Agricultural Working Conditions

Agricultural machinery operates in challenging outdoor environments where bearings must handle:

• Soil and dust contamination
• Moisture exposure
• Continuous vibration
• Shock loading during field operation

The Agri Bearing 200 Series-2 is designed to provide:

Reliable Contamination Protection

Suitable sealing structures help reduce the impact of:

• Dirt particles
• Agricultural debris
• Moisture penetration

Stable Load Performance

Available models cover different equipment requirements, from compact agricultural machines to heavy-duty tillage applications.

Replacement Compatibility

Common agricultural bearing dimensions make these models suitable for aftermarket replacement and machinery maintenance applications.

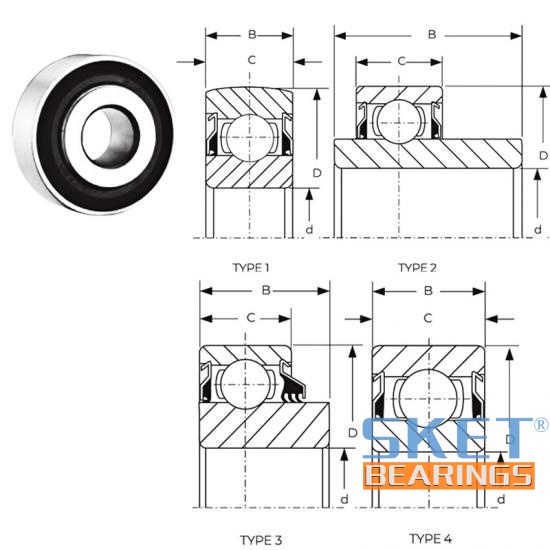

Agri Bearing 200 Series-2 Product Specifications

Bearing.No. Type Dimensions(in./mm) Load.Ratings Weight (kg) d D B C Dynamic Static 202RRE 2 0.5906 1.378 0.878 0.4331 7.75 3.6 0.056 15 35 22.3 11 204RR8 4 0.631 1.7805 0.61 0.61 12.8 6.6 0.12 16.027 45.225 15.494 15.494 205GP 3 0.6299 2.0902 0.7677 0.7165 14 7.85 0.189 16 53.09 19.5 18.2 205DDS3/4 3 0.75 2.0902 0.7677 0.7165 14 7.85 0.183 19.05 53.09 19.5 18.2 206KRP4 3 0.99 2.4409 0.875 0.7087 19.42 11.3 0.246 25.146 62 22.225 18 208NPPB5 1 1.438 3.1496 0.8661 0.8661 29.6 18.2 0.458 36.525 80 22 22

Agricultural Bearing Model Selection Guide

202RRE Agricultural Bearing

The 202RRE model is suitable for compact agricultural equipment requiring a smaller bearing size with reliable operating performance.

Typical applications:

• Light-duty agricultural machinery
• Small rotating assemblies
• Equipment attachment systems

204RR8 Agricultural Bearing

The 204RR8 agricultural bearing is commonly selected for general agricultural equipment applications.

Suitable for:

• Farm machinery components
• Agricultural attachments
• Replacement applications

205GP Agricultural Bearing

The 205GP model provides a commonly used agricultural bearing configuration for general farm machinery applications.

Suitable for:

• Cultivators
• Seeders
• Agricultural implements

205DDS3/4 Agricultural Bearing

The 205DDS3/4 is designed for customers requiring a replacement agricultural bearing with compatible dimensions and stable operating performance.

Common applications:

• Agricultural equipment repair
• Aftermarket replacement
• Machinery maintenance

206KRP4 Agricultural Bearing

The 206KRP4 provides higher load capacity compared with smaller models.

Performance:

• Dynamic load rating: 19.42 kN
• Static load rating: 11.3 kN

Suitable for:

• Medium-duty farm machinery
• Higher load agricultural applications

208NPPB5 Heavy Duty Agricultural Bearing

The 208NPPB5 is one of the higher-capacity models in the Agri Bearing 200 Series-2 range.

Performance:

• Dynamic load rating: 29.6 kN
• Static load rating: 18.2 kN

Recommended applications:

• Disc harrows
• Heavy tillage equipment
• High-load agricultural machinery

Agricultural Bearing Sealing Design for Field Applications

Agricultural equipment frequently operates in environments where contamination protection is critical.

The Agri Bearing 200 Series-2 is designed to support reliable operation under:

Dust and Soil Exposure

Farm fields contain fine particles that can accelerate bearing wear.

Suitable sealing protection helps reduce contamination risks.

Moisture and Outdoor Conditions

Agricultural machinery may operate in:

• Wet soil
• Rain conditions
• Outdoor storage environments

Protection against moisture helps improve bearing reliability.

Long Working Seasons

Reliable sealing and proper bearing selection help reduce unexpected maintenance during important farming periods.

Agricultural Bearing Applications

Disc Harrow Bearings

Disc harrows require bearings capable of handling:

• Impact loads
• Soil contamination
• Continuous field operation

The Agri Bearing 200 Series-2 provides replacement solutions for:

• Offset disc harrows
• Tandem disc harrows
• Tillage equipment

Cultivator Bearings

Used for:

• Field cultivators
• Soil preparation machines
• Agricultural attachments

Seeder and Planter Bearings

Suitable for:

• Seed drills
• Planters
• Agricultural machinery components

Agricultural Bearing Replacement and Interchange Support

Finding the correct replacement bearing is critical for agricultural machinery maintenance.

Customers can provide:

• Existing bearing number
• Equipment model
• Shaft dimensions
• Application conditions

We help confirm:

✔ Bearing compatibility
✔ Dimension matching
✔ Suitable replacement model
✔ Supply options

Common replacement searches:

• Agricultural bearing replacement
• Disc harrow bearing replacement
• Farm machinery bearing supplier
• 208NPPB5 replacement bearing
• 205DDS3/4 replacement bearing

Quality Assurance and Supply Support

For agricultural bearing distributors and OEM customers, consistent quality and stable supply are important.

Our supply support includes:

• Dimension inspection
• Rotation performance checking
• Seal condition inspection
• Export packaging support

Available cooperation options:

Agricultural Bearing Distributors

Support:

• Regular supply
• Popular model sourcing
• Inventory planning

OEM Equipment Manufacturers

Support:

• Project-based supply
• Bearing selection assistance
• Customized requirements

Aftermarket Suppliers

Support:

• Replacement confirmation
• Flexible purchasing solutions

Why Choose Our Agricultural Bearing Supply Solution?

Focus on Agricultural Bearing Applications

We understand the requirements of:

• Agricultural machinery manufacturers
• Bearing distributors
• Spare parts suppliers

Replacement-Oriented Support

We help customers identify suitable bearing solutions based on:

• Existing bearing numbers
• Equipment applications
• Technical dimensions

Export Supply Capability

Support includes:

• International shipment coordination
• Export packaging
• Customized labeling requirements

Agricultural Bearing Selection Checklist

To confirm the correct bearing model, please provide:

Bearing Information

• Bearing number
• Existing supplier reference
• Required quantity

Equipment Information

• Machine model
• Application type
• Operating environment

Supply Requirements

• Destination country
• Packaging requirements

We can assist with:

• Bearing selection
• Replacement confirmation
• Supply planning

Frequently Asked Questions

What are agricultural insert bearings used for?

Agricultural insert bearings are designed for farm machinery applications requiring reliable operation under dust, moisture, vibration, and impact conditions.

Can Agri Bearing 200 Series-2 replace OEM agricultural bearings?

Replacement compatibility can be confirmed by comparing bearing numbers, dimensions, and application requirements.

Which model is suitable for heavy disc harrow applications?

The 208NPPB5 agricultural bearing provides higher load capacity and is suitable for heavy-duty tillage equipment.

How do I choose the correct agricultural bearing?

Selection should consider:

• Bearing dimensions
• Equipment type
• Load conditions
• Working environment

Request Agri Bearing 200 Series-2 Quotation

Looking for reliable Agricultural Insert Bearings for Disc Harrows, Cultivators, and Farm Machinery?

Send us:

• Bearing model
• Equipment information
• Required quantity
• Application details

We can support:

✔ Replacement bearing confirmation
✔ Technical assistance
✔ Bulk supply quotation
✔ Export cooperation
