7 Pre-Installation Checks That Prevent 80% of Disc Harrow Bearing Failures

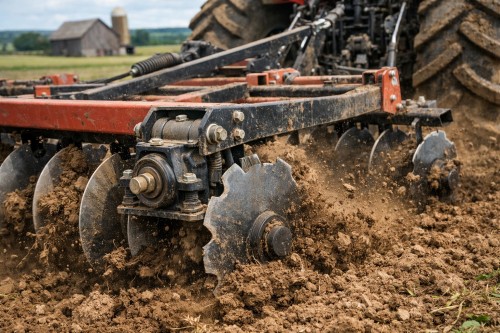

Disc harrow bearing working in harsh agricultural field conditions with mud and soil exposure.

In agricultural applications, bearing failures are often blamed on product quality. However, in many real-world cases, the root cause appears much earlier—before the bearing is even installed. This is why a Disc Harrow Bearing Pre-Installation Inspection process is critical for OEMs, distributors, and importers.

Field cases show that seal leakage in muddy soil, vibration caused by misalignment, and grease leakage during planting season are often linked to missing pre-installation inspection.

• Unexpected failures during peak farming seasons
• Increased warranty claims and replacement costs
• Damage to long-term customer relationships

A structured Disc Harrow Bearing Pre-Installation Inspection process is a key part of supply chain risk management.

1. Visual Inspection: First Step in Disc Harrow Bearing Pre-Installation Inspection

What to Check

• Seal condition (no cracks or deformation)
• Housing surface (no rust or damage)
• Protective cover integrity
• Surface finish consistency

Engineering Judgment Standard

• Surface rust depth > 0.05 mm → Reject
• Visible seal deformation → Reject immediately

Disc harrow bearings operate in mud, moisture, and fertilizer environments. Even small defects can lead to early field failure.

Related reading: Disc Harrow Bearings for Different Soil Conditions: How to Choose the Right Bearing

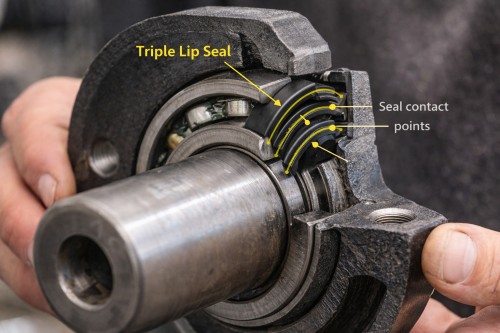

2. Seal Integrity Check: Core Step in Disc Harrow Bearing Pre-Installation Inspection

Inspection Focus

• Seal lip elasticity
• Uniform contact surface
• Gap consistency

Engineering Judgment Standard

• Seal gap > 0.2 mm → Reject
• Non-uniform contact width → High leakage risk

Field Failure Case

In muddy field operations, excessive seal gap can allow soil intrusion within hours, leading to grease contamination and bearing seizure.

3. Rotation Test: Internal Health Check in Disc Harrow Bearing Pre-Installation Inspection

How to Perform

• Rotate bearing manually
• Check smoothness
• Listen for abnormal noise

Engineering Judgment Standard

• Torque resistance variation > 15% → Internal defect suspected
• Continuous noise → Raceway damage or contamination
• Sudden stiffness → Lubrication or misalignment issue

Field Failure Case

Misalignment during installation often leads to vibration in the first planting cycle, accelerating wear and early failure.

4. Grease Condition Check: Hidden Risk in Disc Harrow Bearing Pre-Installation Inspection

What to Look For

• Even grease distribution
• No contamination particles
• No separation or drying

Engineering Judgment Standard

• Grease discoloration (dark brown/black) → Reject
• Dry zones > 20% surface → Lubrication risk

Field Failure Case

Grease leakage or degradation during peak planting season can cause overheating under continuous load.

Related reading: When Should You Choose Relubricable Disc Harrow Bearings?

5. Dimensional & Fit Check: Installation Stability in Disc Harrow Bearing Pre-Installation Inspection

Key Checks

• Bore and outer diameter tolerance
• Housing compatibility
• Shaft fit accuracy

Engineering Judgment Standard

• Oversize fit > +0.03 mm → Vibration risk
• Undersize fit > -0.02 mm → Overheating risk

Field Failure Case

Loose fit leads to micro-slip vibration, which damages sealing surfaces under dusty soil conditions.

6. Packaging & Traceability: Supply Chain Control in Disc Harrow Bearing Pre-Installation Inspection

Checklist

• Batch numbers / traceability
• Moisture-proof packaging
• Quality certifications

Engineering Judgment Standard

• No traceability → Reject for OEM supply
• Moisture exposure → Corrosion risk

Traceability improves quality control and reduces after-sales risk in bulk agricultural supply chains.

7. Common Inspection Mistakes in Disc Harrow Bearing Pre-Installation Inspection

• Only sampling instead of full batch inspection
• Ignoring seal tolerance evaluation
• Skipping grease condition checks
• No final inspection before installation

Field Impact

• Muddy field seal failure
• Misalignment vibration during planting season
• Grease leakage under heavy load

Related reading: 6 Common Bearing Installation Errors That Cause Premature Failure

Conclusion: Disc Harrow Bearing Pre-Installation Inspection Prevents Field Failures

A structured Disc Harrow Bearing Pre-Installation Inspection process significantly reduces early failures, downtime, and warranty costs.

• Reduces early bearing failure in harsh environments
• Prevents unexpected downtime during planting season
• Improves supply chain reliability

Need a Standard Inspection Checklist?

If you want to standardize your Disc Harrow Bearing Pre-Installation Inspection process, we can provide a ready-to-use checklist designed for OEMs and warehouse teams.

Contact our engineers to request a free pre-installation checklist.
This helps reduce field failure risks and improve operational reliability in agricultural applications.
