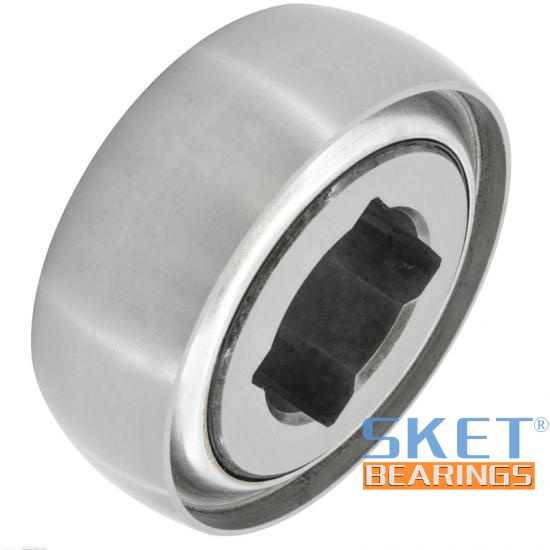

The W211PPB3 agricultural disc harrow bearing is designed for OEM agricultural machinery operating in high contamination, heavy shock load, and misalignment-prone environments.
It is commonly used as a replacement bearing for disc harrow and tillage equipment applications, where installation fit, sealing performance, and structural stability are critical procurement factors.
Key Procurement Information (Installation-Critical Specifications)
For agricultural insert bearings, installation compatibility is the first purchasing requirement.
| Parameter | Specification |
|---|---|
| Bearing Model | W211PPB3 |
|
Inner Diameter |
42mm， 1.6535in |
| Outside Diameter | 100mm |
| Width | 33.34mm |
| Speed Limit |
500 RPM |
| Shaft Fit | Round shaft / precision ground shaft (verify tolerance before installation) |
| Housing Fit | Press-fit housing / agricultural mounting unit (OEM dependent) |
| Locking Method | Set screw / adapter / locking collar (application-specific) |
| Lubrication | Chevron SRI-2 Grease |
| Dynamic Load Rating | 11,000 lbf |
| Static Load Rating | 6,550 lbf |
| Material | High carbon chromium steel (GCr15 or equivalent) |
| Heat Treatment | Through-hardened raceway for impact resistance |
Engineering Note:
Final dimensions may vary depending on OEM disc harrow housing design. Always verify shaft and housing drawings before replacement.
Structural Design Features
1. Triple-Lip Sealing System (FKM / NBR Options)
The W211PPB3 uses a multi-stage sealing design to improve resistance against:
- Mud intrusion in wet soil fields
- Dust and abrasive particles
- Water and fertilizer contamination
Seal material selection depends on operating temperature and moisture level.
2. Spherical Outer Raceway (Self-Alignment Capability)
Designed to accommodate:
- Shaft misalignment
- Frame deformation during tillage
- Dynamic vibration under field load
Reduces uneven load distribution on raceway surfaces.
3. Reinforced Raceway for Shock Load Conditions
Optimized for:
- Rocky soil impact
- High-speed disc rotation
- Repeated cyclic agricultural loading
4. Grease Retention System
Factory pre-filled lubrication designed to:
- Maintain stable lubrication film
- Reduce maintenance frequency
- Improve contamination resistance
Application Scope
W211PPB3 is widely used in:
- Disc harrows (offset / tandem / heavy-duty)
- Cultivators and soil preparation equipment
- Ploughing machinery systems
- Seedbed preparation machines
- Agricultural tillage equipment OEM assemblies
- Replacement bearing programs for farm machinery fleets
Replacement & Compatibility Notice
W211PPB3 can be supplied as an aftermarket replacement option for equivalent W-series agricultural insert bearing applications.
Before replacement, buyers should confirm:
- Bore diameter
- Outer diameter
- Width dimensions
- Locking structure type
- Seal configuration
- Shaft and housing tolerance
This ensures correct installation and prevents premature failure caused by mismatched fit.
Performance Positioning (No Fixed Lifetime Claims)
Compared with standard single- or double-lip agricultural insert bearings, W211PPB3 is designed to provide:
- Improved resistance to contamination ingress
- More stable performance under shock load conditions
- Better lubrication retention in dusty and muddy environments
Actual service life depends on:
shaft condition, housing fit, operating speed, soil moisture, lubrication maintenance, and field conditions.
W211PPB3 vs W210PPB3 vs W209PPB3
| Model | Duty Level | Structure | Application |
|---|---|---|---|
| W209PPB3 | Light duty | Standard seal | Basic tillage systems |
| W210PPB3 | Medium duty | Improved sealing | General agricultural machinery |
| W211PPB3 | Heavy duty | Reinforced + triple-lip seal | Severe shock + high contamination environments |
Recommended upgrade path for high-load disc harrow applications.
Procurement Selection Guide (Important Section)
When to choose W211PPB3 instead of W210PPB3?
- Frequent bearing failure in muddy fields
- High impact or rocky soil conditions
- Excessive vibration during operation
- Short grease life cycle in current equipment
Seal Material Selection
- NBR seal → general farming, moderate temperature
- FKM seal → high temperature, fertilizer exposure, heavy moisture conditions
OEM & Distributor Stock Strategy
- W209PPB3 → high turnover, low cost replacement
- W210PPB3 → standard OEM fleet supply
- W211PPB3 → heavy-duty premium market / failure-sensitive applications
OEM Supply & Manufacturing Capability
We support:
- W211PPB3 bearing supplier supply program
- W211PPB3 bearing manufacturer OEM production
- W211PPB3 bearing wholesale & distributor orders
- Private label laser marking
- Custom packaging for agricultural machinery brands
Quality Control System (Field-Oriented QC)
Each batch includes:
- Bore and OD inspection according to drawing tolerance
- Inner ring and outer ring width verification
- Seal visual inspection and grease-fill confirmation
- Radial clearance verification where required
- Lot number traceability on packaging and inspection report
- Optional pre-shipment inspection (SGS / BV)
Request W211PPB3 Bearing Quote
Please provide:
- Bearing model: W211PPB3
- Required quantity
- Application equipment type
- Shaft and housing dimensions (if available)
- OEM requirements (marking / packaging)
- Destination country
Technical confirmation + quotation within 24 hours
1. What is W211PPB3 used for?
It is used in disc harrows, cultivators, and agricultural tillage equipment operating under heavy load and contamination conditions.
2. Can W211PPB3 be used as a replacement bearing?
Yes. It is an aftermarket replacement option for equivalent agricultural insert bearing applications, subject to dimensional verification.
3. Do you support W211PPB3 bearing wholesale supply?
Yes. We support W211PPB3 bearing wholesale, distributor supply, and OEM manufacturing programs.
4. Can I buy W211PPB3 agricultural bearing samples?
Yes. Sample orders (1–10 pcs) are available for testing and fit verification.
5. What is your W211PPB3 bearing delivery time?
- Stock items: 7 days
- Standard production: 15–30 days
- Bulk orders: up to 45 days
