Choosing the right disc harrow bearings is important for keeping agricultural machinery running reliably and reducing unexpected downtime. For distributors, wholesalers, and replacement-part buyers, one of the most common questions is whether to choose round bore or square bore disc harrow bearings.
Both types are used in agricultural equipment, but they are designed for different shaft configurations and equipment requirements. Lubrication options, bearing dimensions, and compatibility with the original equipment are also important when selecting the right replacement.
This guide compares round bore disc harrow bearings and square bore disc harrow bearings, explains their common lubrication options, and helps buyers identify the right type for their equipment.
1. Why Bearing Selection Matters for Disc Harrows

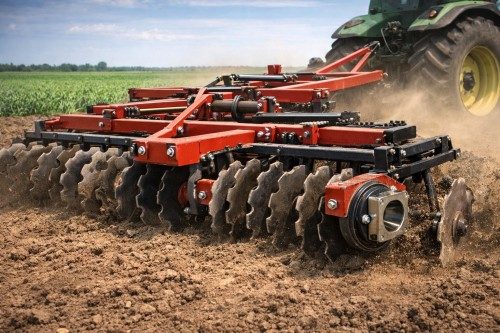

Disc harrows work in demanding agricultural environments where bearings are exposed to:
- Soil resistance and continuous vibration
- Dust, mud, and moisture
- Repeated operating loads and impacts
- Long working hours during planting and tillage seasons
The wrong bearing type or size can lead to poor shaft fit, installation problems, and premature replacement.
When sourcing disc harrow bearings, buyers should consider more than the bearing price. The bore design, lubrication option, dimensions, and compatibility with the original equipment all matter.
2. What Are Round Bore Disc Harrow Bearings?
Round bore disc harrow bearings have a circular inner bore designed to fit round shafts. They are commonly used in agricultural equipment with standard round shaft configurations.
Their main advantages include:
- Standard shaft compatibility: Suitable for equipment designed with round shafts.
- Straightforward installation: A familiar mounting option for many agricultural machinery applications.
- Flexible replacement options: Available in different sizes and configurations for agricultural equipment.
Round bore bearings are commonly considered for equipment where the original shaft design uses a round mounting configuration.
For replacement purchasing, always confirm the original bearing model and shaft dimensions rather than selecting a bearing based on bore shape alone.
Explore SKET's Round Bore Agricultural Bearing Series for available product options.
3. What Are Square Bore Disc Harrow Bearings?
Square bore disc harrow bearings feature a square inner bore designed to fit square shafts. This configuration provides a matching shaft-to-bore fit for agricultural machinery designed around square shaft mounting.
Their main advantages include:
- Square shaft compatibility: Designed for equipment using square shafts.
- Secure shaft fit: The matching square profiles help prevent relative rotation between the shaft and bearing inner ring.
- Application-specific replacement: Suitable for disc harrows and other agricultural equipment designed for square bore bearings.
Square bore bearings should be selected when the original equipment requires a square shaft configuration. They are not automatically interchangeable with round bore bearings.
For distributors and replacement-part buyers, confirming the shaft dimensions and original bearing model is essential before ordering.
View SKET's Square Bore Agricultural Bearing Series for more product information.

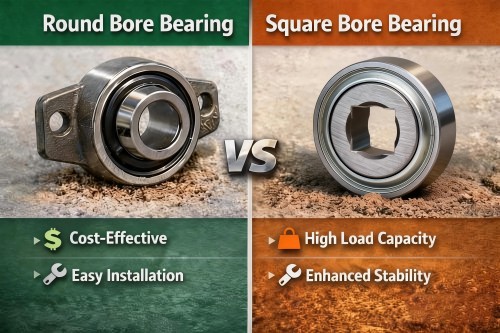

4. Round Bore vs Square Bore Disc Harrow Bearings: Key Differences
When comparing round bore vs square bore disc harrow bearings, the most important difference is the shaft configuration they are designed to fit.
| Comparison | Round Bore Bearings | Square Bore Bearings |
|---|---|---|
| Bore design | Circular inner bore | Square inner bore |
| Shaft compatibility | Round shaft | Square shaft |
| Installation | Fits equipment designed for round bores | Fits equipment designed for square bores |
| Shaft retention | Depends on the shaft and locking arrangement | Matching square profiles help prevent relative rotation |
| Replacement | Suitable for round bore original designs | Suitable for square bore original designs |
| Selection priority | Confirm round shaft dimensions | Confirm square shaft dimensions |
Which type should you choose?
- Choose round bore disc harrow bearings when your equipment uses a round shaft and the original bearing has a round bore.
- Choose square bore disc harrow bearings when your equipment is designed for a square shaft and requires a square bore replacement.
Neither type is universally better. The correct choice depends on the original equipment design, shaft compatibility, and required bearing specifications.
5. Greaseable vs Non-Greaseable Disc Harrow Bearings
Besides bore design, lubrication is another important consideration when purchasing disc harrow bearings.
Depending on the bearing design, buyers may encounter greaseable and non-greaseable disc harrow bearings.
Greaseable Disc Harrow Bearings
Greaseable disc harrow bearings are designed with a lubrication provision that allows grease to be replenished during maintenance.
They may be suitable for applications where:
- Regular lubrication is part of the maintenance schedule.
- Equipment operates for extended periods.
- The maintenance team can access the bearing for relubrication.
Non-Greaseable Disc Harrow Bearings
Non-greaseable disc harrow bearings are generally supplied with factory-applied lubricant and sealed for operation without routine grease replenishment.
They can be a practical option when buyers prefer:
- Less routine lubrication work.
- A sealed bearing configuration.
- Simpler maintenance arrangements.
How to Choose Between Them
| Bearing Configuration | Main Consideration |
|---|---|
| Greaseable round bore disc harrow bearing | Round shaft compatibility with a relubrication requirement |
| Greaseable square bore disc harrow bearing | Square shaft compatibility with a relubrication requirement |
| Non-greaseable round bore disc harrow bearing | Round shaft compatibility with a sealed lubrication design |
| Non-greaseable square bore disc harrow bearing | Square shaft compatibility with a sealed lubrication design |
You may also encounter terms such as relubricable round bore disc harrow bearing, relubricable square bore disc harrow bearing, and non-relubricable disc harrow bearing when searching for replacement products.
Buyers may also search for non-relubricable square bore disc harrow bearings or non-relubricable round bore disc harrow bearings when looking for sealed bearing configurations.
These descriptions help identify the intended lubrication arrangement, but buyers should always confirm the actual bearing design and manufacturer's specifications before ordering.
The choice between greaseable and non-greaseable bearings should be based on the original equipment requirements and maintenance preferences, rather than assuming one option always provides a longer service life.
6. Disc Harrow Bearing Sizes and Shaft Compatibility
Choosing the correct disc harrow bearing sizes is essential for a proper replacement.
Before ordering, check the following dimensions and specifications:
- Bore size: Confirm the inner diameter or square shaft dimensions.
- Outside diameter: Make sure the bearing fits the original housing.
- Width: Check the available mounting space.
- Bore type: Confirm whether the original design uses a round bore or square bore.
- Lubrication design: Check whether a greaseable or non-greaseable bearing is required.
For buyers sourcing square bore bearings or round bore replacements, the original bearing number is often the easiest starting point.
If the model number is unavailable, provide the bearing dimensions, shaft configuration, and equipment information to help identify a suitable replacement.
Do not assume that bearings with similar outside dimensions are interchangeable. Bore design and other mounting specifications must also match.

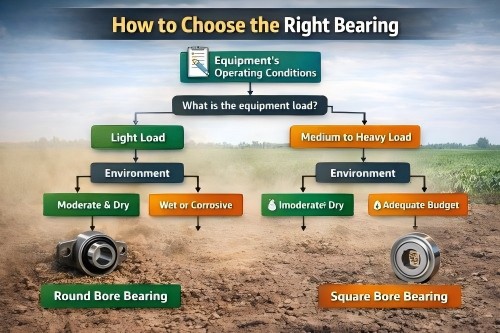

7. How to Choose the Right Disc Harrow Bearing
When selecting disc harrow bearings, distributors and replacement-part buyers can follow these practical steps:
1. Confirm the Shaft Type
Identify whether the equipment uses a round shaft or square shaft. This determines the required bore design.
2. Check the Original Bearing Model
Use the existing bearing number whenever possible to identify the correct replacement.
3. Confirm the Bearing Dimensions
Check the bore, outside diameter, and width before purchasing.
4. Select the Lubrication Option
Determine whether the original application requires a greaseable or non-greaseable bearing.
5. Consider the Equipment's Working Conditions
Take into account dust, moisture, operating hours, and maintenance arrangements when comparing available bearing configurations.
6. Confirm the Replacement Requirements
For bulk purchasing, provide the required model, quantity, and application details to your bearing supplier.
8. Frequently Asked Questions About Disc Harrow Bearings
Q1: Can round bore bearings replace square bore bearings?
Not directly in most applications. Round bore and square bore bearings are designed for different shaft configurations. Always confirm shaft compatibility and the original equipment requirements before considering a replacement.
Q2: Are square bore disc harrow bearings better than round bore bearings?
Neither type is universally better. Square bore disc harrow bearings are designed for square shafts, while round bore disc harrow bearings are designed for round shafts. The correct option depends on the equipment design.
Q3: What is the difference between greaseable and non-greaseable disc harrow bearings?
Greaseable bearings allow grease to be replenished through a lubrication provision. Non-greaseable bearings generally use factory-applied lubricant and sealed construction, reducing the need for routine relubrication.
Q4: How do I identify the correct disc harrow bearing size?
Check the original bearing model, bore dimensions, outside diameter, and width. If the original model is unavailable, provide clear measurements and shaft details to your supplier.
Q5: What information should I provide when ordering disc harrow bearings in bulk?
Provide the bearing model or OEM part number, bore type, dimensions, lubrication requirements, quantity, and destination market. These details help suppliers check product compatibility and prepare an accurate quotation.
9. Source Disc Harrow Bearings from SKET
SKET supplies agricultural bearings for replacement, distributor, and OEM purchasing requirements.
Our product range includes both round bore agricultural bearings and square bore agricultural bearings for different agricultural machinery applications.
When requesting a quotation, buyers can provide the original bearing model, shaft dimensions, required lubrication configuration, and order quantity to help identify suitable products.
Whether you need round bore disc harrow bearings, square bore disc harrow bearings, or other agricultural bearing configurations, contact SKET to discuss your replacement and bulk sourcing requirements.
