Choosing the Right Disc Bearing: A Decision That Impacts Farm Profitability
Selecting the right disc bearing is not a minor component decision—it directly affects equipment uptime, maintenance cost, and seasonal profitability.
For corn and sorghum fields in Mexico, wheat farms in Iran, and large-scale precision agriculture operations across the United States and Canada, unexpected bearing failure during planting or harvesting windows can cause significant financial losses.
One of the most common technical questions engineers and procurement teams ask is:
Should agricultural machinery use flanged disc units or standard disc bearings?
This article delivers a data-driven, application-focused comparison, helping decision-makers clearly understand performance differences, lifecycle cost implications, and the best solution for their operating conditions.
SKET Agricultural Bearings Promotional
The Role of Disc Bearings in Agricultural Machinery
Disc bearings are essential components in:
- Disc harrows
- Seeders and planters
- Soil tillage equipment
They must withstand:
- Heavy radial and axial loads
- Continuous shock from stones and uneven terrain
- Dust, moisture, fertilizer, and chemical exposure
Understanding how to choose disc bearings for disc harrows is a critical step toward reducing downtime and extending machinery life.
Standard Disc Bearings: Cost-Effective but Condition-Dependent
Standard disc bearings are standalone bearing components installed into separate housings.
Advantages
- Lower initial purchase cost
- Standardized dimensions
- Easy replacement availability
Limitations in Harsh Field Conditions
- Installation quality depends heavily on technician skill
- External seals are more vulnerable to contamination
- Higher replacement frequency in dusty, wet, or abrasive environments
For applications suitable for standard bearings, a commonly used and reliable model is:
Example: Standard Agricultural Disc Bearing
> 1-1/8″ Square Bore Agriculture Disc Bearing
This bearing is widely used in light-duty or controlled environment disc harrows and is recommended by engineers as a stable, proven choice.
Flanged Disc Units: Built for Agricultural Reality
Flanged disc units integrate the bearing, housing, and mounting flange into one pre-assembled unit, designed specifically for heavy agricultural duty cycles.
Key Benefits
- Up to 50% faster installation, reducing labor time
- Factory-controlled alignment
- Integrated sealing system
- Longer service intervals under shock and contamination
For disc harrow applications requiring extreme durability and simplified maintenance, a common flanged solution is an integrated hub assembly, such as:
Example: Agriculture Disc Harrow Bearing Hub Completely
>Agriculture Disc Harrow Bearing Hub Completely
This hub assembly significantly extends service life and reduces maintenance complexity, especially in high-load or multi-season operations.
Quantified Technical Comparison
Installation, Sealing & Structural Performance

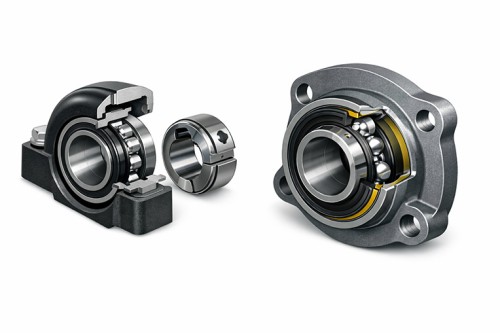

Structural comparison between flanged disc units and standard disc bearings used in agricultural machinery
| Performance Factor | Flanged Disc Units | Standard Disc Bearings |
|---|---|---|
| Installation time | Up to 50% faster | Baseline |
| Alignment accuracy | Factory-controlled | Installer-dependent |
| Sealing reliability | >95% contaminant blockage | External seals |
| Dust & water resistance | Integrated sealing system | Housing-dependent |
Load Capacity & Durability
- Dynamic load capacity: 15–25% higher than standard bearings
- Static load tolerance: 10–20% higher due to flange support
- Contamination resistance: Up to 80% reduction in contaminant ingress under lab-tested soil conditions
Total Cost of Ownership: The Real Decision Metric
A realistic TCO analysis includes:
- Downtime cost during critical farming windows
- Labor cost for bearing replacement
- Replacement frequency per season
- Spare parts inventory and logistics
Avoiding even one breakdown during a peak season can offset the higher upfront cost of a flanged disc unit.
Decision Checklist for Engineers & Buyers
Ask yourself the following questions:
- Does the equipment operate under heavy shock loads or uneven terrain?
- Is dust or moisture exposure constant?
- Would downtime during peak season cause significant financial loss?
- Is maintenance access limited during operation?
- Are ISO or ABMA compliance and OEM compatibility required?
Result Guide — Turn Answers into Action
- 3–5 “Yes” answers → Strongly recommend flanged disc units (higher reliability, lower lifecycle cost, reduced risk)
- 1–2 “Yes” answers → Evaluate flanged units alongside budget considerations (TCO analysis strongly advised)
- 0 “Yes” answers → Standard disc bearings may be sufficient (controlled environment with regular maintenance)
Regional Market Insights
Mexico: Dust, Heat & Corn/Sorghum Farming
Mexican fields often feature abrasive dust and high temperatures. Bearings with strong sealing and longer service intervals help reduce unplanned downtime.
Iran: Wheat Farming & Supply Stability
Long-life bearings reduce dependency on frequent imports and help stabilize equipment availability during critical seasons.
United States: Precision Agriculture & OEM Requirements
Large-scale U.S. farms demand predictable performance, OEM compatibility, and reduced maintenance interruptions.
Canada: Cold Climate & Corrosion Resistance
Cold temperatures and moisture require bearings capable of maintaining lubrication and sealing integrity in harsh conditions.
Case Studies: Proven Results in the Field
Case 1: Large-Scale Farm in the U.S. Midwest
Challenge: Frequent bearing failures during a critical two-week spring planting window.
Solution: Disc harrows upgraded using heavy-duty agricultural bearing hub solutions.
Result: Bearing replacement interval increased from 1.5 seasons to 2.5 seasons, a 40% improvement, ensuring equipment availability during peak demand.
Case 2: Wheat Farm Operation in Iran
Challenge: Limited spare-part availability and frequent maintenance interruptions.
Solution: Adoption of long-service-life agricultural bearing components.
Result: Reduced annual bearing consumption and improved seasonal uptime.
