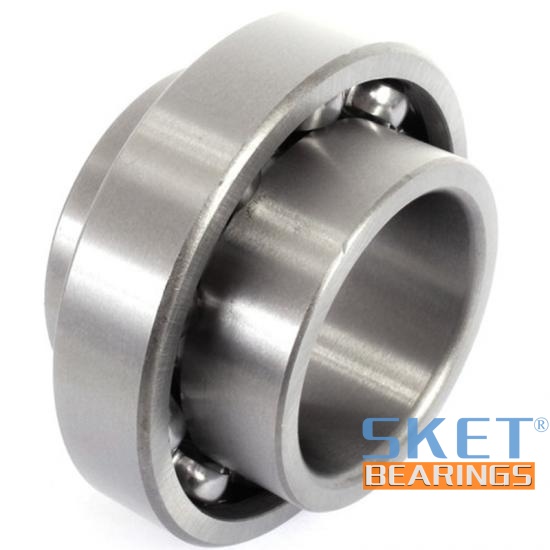

Heavy-Duty Agricultural Bearing Designed for Harsh Tillage Conditions
The WIR210-31 Agricultural Disc Harrow Bearing is engineered for agricultural machinery operating in demanding environments where dust, mud, vibration, and impact loads can accelerate bearing failure.
Designed for disc harrows, cultivators, and heavy-duty tillage equipment, WIR210-31 combines a reinforced insert bearing structure, spherical outer ring design, and agricultural sealing protection to deliver reliable performance in challenging field conditions.
For agricultural machinery OEMs, distributors, and aftermarket suppliers, WIR210-31 provides a dependable replacement solution with consistent quality, stable supply capability, and professional technical support.
Why Agricultural Equipment Buyers Choose WIR210-31
Built for Conditions Where Standard Bearings Fail
Agricultural bearings face unique challenges:
- Soil and dust contamination
- Water and fertilizer exposure
- Repeated impact loads
- Shaft misalignment
- Long operating hours during farming seasons
The WIR210-31 is specifically designed to handle these challenges, helping reduce unexpected downtime and replacement frequency.
Key Specifications for Accurate Replacement
Before purchasing an agricultural bearing, correct installation compatibility is critical.
| Parameter | Specification |
|---|---|
| Bearing Model | WIR210-31 |
| Bearing Type | Agricultural Insert Bearing |
| Bore Diameter | 50.8 mm / 2 inch |
| Outside Diameter | 90 mm |
| Width | 30.18 mm |
| Inner Ring Type | Extended Inner Ring |
| Locking Method | Set Screw Locking |
| Outer Ring Design | Spherical Outer Ring |
| Lubrication | Factory Pre-Greased |
| Material | High Carbon Chromium Steel (GCr15 Equivalent) |
| Application | Disc Harrow / Cultivator / Tillage Equipment |
Important:
Dimensions and specifications should always be verified against the original equipment design before replacement.
Our technical team can assist customers with bearing identification and application confirmation.
Engineering Design Features
1. Agricultural Sealing System for Maximum Contamination Protection
Bearing contamination is one of the leading causes of agricultural equipment failure.
The WIR210-31 uses an agricultural sealing design to protect internal components from:
✔ Soil particles
✔ Dust intrusion
✔ Mud contamination
✔ Moisture exposure
✔ Fertilizer-related corrosion risks
The improved sealing structure helps maintain grease retention and supports longer operation intervals.
2. Spherical Outer Ring for Self-Alignment Capability
Agricultural machinery rarely operates under perfect alignment conditions.
During field operation, equipment frames may experience:
- Mechanical deformation
- Vibration
- Uneven loading
- Installation variation
The spherical outer ring allows the bearing to compensate for minor misalignment, helping maintain stable load distribution and reduce abnormal wear.
3. Reinforced Raceway for Shock Load Applications
Disc harrows and tillage equipment experience continuous impact forces.
The WIR210-31 is designed for:
- Rocky farmland
- Heavy soil conditions
- High-resistance cultivation
- Long working cycles
The hardened raceway improves resistance against:
- Raceway fatigue
- Impact damage
- Premature wear
4. Factory Lubrication for Reduced Maintenance
Each bearing is supplied with factory-filled grease to provide:
- Stable lubrication performance
- Reduced maintenance requirements
- Improved contamination resistance
- Easier installation
Agricultural Machinery Applications
WIR210-31 is widely used in:
Disc Harrow Equipment
- Offset disc harrows
- Tandem disc harrows
- Heavy-duty disc cultivators
Soil Preparation Equipment
- Cultivators
- Ploughing machines
- Seedbed preparation equipment
Agricultural Replacement Programs
- Farm machinery repair suppliers
- Agricultural bearing distributors
- OEM machinery manufacturers
WIR210-31 Replacement Selection Guide
Choosing the correct agricultural bearing requires more than matching the model number.
Before ordering, confirm:
| Check Item | Why It Matters |
|---|---|
| Bore Size | Ensures proper shaft fit |
| Outside Diameter | Matches housing design |
| Width | Prevents installation issues |
| Locking Structure | Ensures secure mounting |
| Seal Configuration | Matches field conditions |
Incorrect bearing selection may lead to:
- Excessive vibration
- Premature wear
- Grease leakage
- Unexpected downtime
WIR210-31 Supply Advantages for OEM & Distributors
Reliable Supply for Agricultural Equipment Markets
We support:
Wholesale Supply
- Agricultural bearing distributors
- Spare parts suppliers
- Equipment maintenance companies
OEM Support
Available services include:
- Private label marking
- Customized packaging
- Production batch management
- Technical documentation support
Quality Control & Traceability
Every production batch follows strict inspection procedures.
Inspection Process
| Inspection Item | Quality Control |
|---|---|
| Bore Dimension | Precision Measurement |
| OD Dimension | Drawing Verification |
| Width Accuracy | Production Inspection |
| Seal Assembly | Visual Inspection |
| Grease Filling | Lubrication Check |
| Rotation Performance | Running Test |
| Batch Traceability | Production Record |
Optional third-party inspection:
- SGS
- BV
- Customer-appointed inspection agencies
WIR210-31 vs Standard Agricultural Insert Bearings
| Feature | Standard Insert Bearing | WIR210-31 |
|---|---|---|
| Agricultural Environment | Limited | Designed for Farming Conditions |
| Contamination Protection | Basic | Enhanced Sealing |
| Misalignment Compensation | Limited | Spherical Outer Ring |
| Shock Load Resistance | Medium | Heavy-Duty Design |
| Supply Application | General Use | OEM & Aftermarket Programs |
How to Order WIR210-31 Agricultural Bearings
To receive the correct quotation, please provide:
- Bearing model
- Required quantity
- Equipment application
- Shaft size
- Current bearing information
- Destination country
We provide:
✔ Bearing compatibility confirmation
✔ Technical recommendation
✔ Competitive pricing
✔ Delivery planning
Frequently Asked Questions
What equipment uses WIR210-31 bearing?
WIR210-31 is commonly used in disc harrows, cultivators, and agricultural tillage equipment requiring reliable operation under dust, mud, and impact conditions.
Can WIR210-31 replace my existing agricultural bearing?
Yes. Replacement should be confirmed by checking bore size, OD, width, locking structure, and application conditions.
Do you supply WIR210-31 for wholesale orders?
Yes. We support distributors, OEM suppliers, and agricultural machinery aftermarket programs.
Can you provide customized packaging or branding?
Yes. Private label marking and customized packaging solutions are available for qualified orders.
What information is needed for bearing selection?
The recommended information includes:
- Bearing model
- Equipment type
- Shaft dimensions
- Operating environment
- Required quantity
