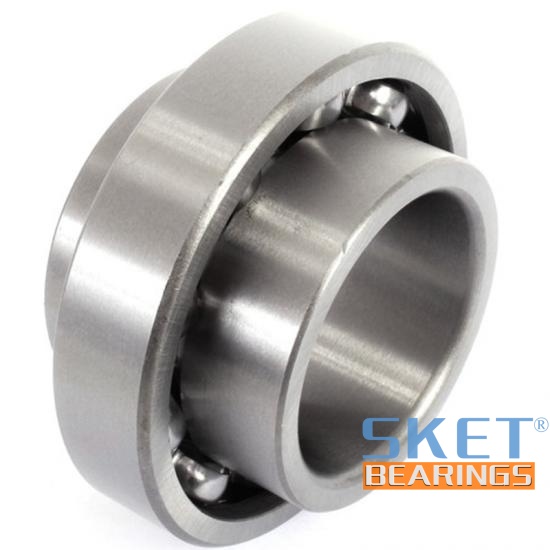

The WIR212-39 Agricultural Disc Harrow Bearing is an agricultural insert bearing developed for farm machinery manufacturers, agricultural equipment distributors, and replacement parts suppliers.
Designed for disc harrow and tillage equipment applications, WIR212-39 provides a practical replacement solution where bearing fit, shaft locking reliability, contamination protection, and long-term supply consistency are critical purchasing considerations.
Compared with standard industrial insert bearings, WIR212-39 is configured for agricultural machinery operating environments, helping reduce replacement risks caused by installation mismatch, contamination exposure, and unstable supply sources.
For OEM and wholesale customers, we provide:
- Stable production batches
- Consistent dimensional control
- Replacement verification support
- Customized packaging solutions
- OEM and private label services
Before ordering, our technical team can help confirm compatibility based on your existing bearing number, equipment model, or installation dimensions.
WIR212-39 Bearing Specifications
| Parameter | Specification |
|---|---|
| Bearing Model | WIR212-39 |
| Bearing Type | Agricultural Insert Bearing |
| Bore Diameter |
57.2 mm / 2.252 inch |
| Outside Diameter | 100 mm |
| Width | 39.7 mm |
| Inner Ring Design | Extended Inner Ring |
| Locking Method | Set Screw Locking |
| Outer Ring Design | Spherical Outer Ring |
| Material | GCr15 Chrome Bearing Steel |
| Lubrication | Factory Pre-Greased |
| Seal Type | Agricultural Protective Seal |
| Application | Disc Harrow, Cultivator, Tillage Machinery |
Replacement Confirmation Information
To ensure correct bearing selection, please provide:
- Original bearing number
- Shaft diameter
- Housing dimensions
- Equipment manufacturer and model
- Current application conditions
This information helps confirm whether WIR212-39 is suitable for your replacement requirement.
WIR212-39 Agricultural Bearing Applications
WIR212-39 is commonly used in agricultural machinery requiring stable rotating support under field operating conditions.
Disc Harrow Applications
Typical equipment includes:
- Offset disc harrows
- Tandem disc harrows
- Heavy tillage equipment
- Soil preparation machines
Farm Machinery Replacement Applications
Common replacement markets include:
- Agricultural machinery spare parts
- Farm equipment repair suppliers
- Agricultural component distributors
Suitable Customer Types
WIR212-39 is supplied to:
- Agricultural machinery OEM manufacturers
- Bearing importers
- Farm equipment distributors
- Replacement parts wholesalers
Why Agricultural Equipment Requires Specialized Insert Bearings
Agricultural machinery bearings operate under conditions that differ from general industrial equipment.
Common challenges include:
- Soil and dust contamination
- Outdoor moisture exposure
- Continuous vibration
- Shock loading during field operation
- Difficult maintenance conditions
Using a standard industrial insert bearing may increase replacement frequency when the operating environment exceeds normal conditions.
WIR212-39 is designed around these agricultural application requirements.
Common Bearing Failure Risks and WIR212-39 Solutions
| Failure Risk | Purchasing Concern | WIR212-39 Design Advantage |
|---|---|---|
| Premature failure | Frequent replacement increases maintenance cost | Agricultural sealing structure helps protect internal components |
| Bearing movement | Loose mounting affects equipment operation | Extended inner ring with set screw locking improves shaft fixation |
| Uneven wear | Misalignment reduces bearing life | Spherical outer ring helps compensate minor alignment errors |
| Lubrication problems | Short maintenance intervals | Factory grease filling improves lubrication consistency |
| Supply inconsistency | Difficult aftermarket inventory management | Stable batch production supports continuous supply |
Engineering Features Designed for Agricultural Applications
Agricultural Sealing Structure
For disc harrow and tillage equipment, bearing contamination protection is an important factor affecting service life.
WIR212-39 sealing design helps:
- Improve protection against external contaminants
- Maintain grease inside the bearing
- Reduce contamination-related maintenance issues
Spherical Outer Ring for Installation Compensation
Agricultural equipment structures may experience minor housing alignment variation during installation and operation.
The spherical outer ring design helps improve:
- Load distribution
- Installation tolerance compensation
- Operating stability
Extended Inner Ring with Set Screw Locking
A secure shaft connection is essential for agricultural machinery operating under vibration and impact loads.
The extended inner ring and set screw locking system provide:
- Stable shaft positioning
- Reduced slipping risk
- Easier installation and replacement
WIR212-39 vs Standard Insert Bearing
| Feature | Standard Insert Bearing | WIR212-39 Agricultural Bearing |
|---|---|---|
| Application | General machinery | Farm machinery applications |
| Contamination protection | Standard sealing | Agricultural sealing design |
| Mounting requirement | General installation | Shaft locking optimization |
| Operating environment | Controlled conditions | Outdoor agricultural conditions |
| Supply purpose | General replacement | Agricultural aftermarket and OEM supply |
For agricultural machinery suppliers, selecting an application-specific bearing can help reduce replacement uncertainty and improve customer satisfaction.
WIR212-39 Replacement Guide
When sourcing a replacement agricultural bearing, dimensional compatibility should be confirmed before purchasing.
Check the following:
| Item | Purpose |
|---|---|
| Bearing model | Confirm interchange possibility |
| Bore diameter | Match shaft size |
| Outside diameter | Verify housing fit |
| Width | Confirm installation clearance |
| Locking method | Ensure mounting compatibility |
| Seal type | Match operating environment |
If the original bearing number is unavailable, our team can assist based on:
- Bearing photos
- Equipment model
- Shaft measurements
- Housing information
OEM and Wholesale Supply Support
WIR212-39 Bearing Supply for Global Buyers
For distributors, OEM manufacturers, and agricultural machinery suppliers, we provide supply solutions including:
Bulk Ordering Support
Available services:
- Production planning
- Export packaging
- Batch consistency management
- Long-term supply support
OEM / Private Label Services
Available options:
- Customized marking
- Private packaging
- Product documentation
- Customer-specific requirements
Technical Support Before Ordering
Support includes:
- Bearing selection
- Replacement confirmation
- Drawing review
- Application recommendation
Quality Control and Production Verification
To support consistent replacement performance, WIR212-39 production follows controlled inspection procedures.
| Inspection Item | Purpose |
|---|---|
| Bore measurement | Confirm shaft compatibility |
| Outer diameter inspection | Verify housing fit |
| Width measurement | Ensure installation accuracy |
| Material inspection | Confirm bearing steel quality |
| Seal inspection | Verify contamination protection |
| Grease inspection | Ensure lubrication consistency |
| Rotation testing | Check operating performance |
| Batch records | Maintain product traceability |
Additional support:
- Third-party inspection
- Customer quality requirements
- OEM documentation
Why Choose WIR212-39 as Your Agricultural Bearing Supplier?
For purchasing departments and distributors, WIR212-39 provides:
✔ Confirmed agricultural application design
✔ Stable replacement dimensions
✔ Consistent production quality
✔ OEM and aftermarket supply capability
✔ Technical support before purchase
The value of WIR212-39 is not only the bearing itself, but also the supply reliability and technical support required by agricultural equipment businesses.
Frequently Asked Questions
Is WIR212-39 a replacement bearing for disc harrow equipment?
Yes. WIR212-39 is designed as an agricultural insert bearing solution for disc harrows, tillage equipment, and related farm machinery applications.
Compatibility should be confirmed according to dimensions and mounting structure.
How can I confirm WIR212-39 replacement compatibility?
Please provide:
- Original bearing number
- Shaft diameter
- Equipment model
- Housing information
Our team can assist with replacement confirmation.
Can you supply WIR212-39 for wholesale orders?
Yes.
We support:
- Bearing distributors
- Agricultural parts wholesalers
- OEM manufacturers
with bulk supply and customized packaging options.
Do you provide OEM services?
Yes.
OEM support includes:
- Private labeling
- Packaging customization
- Technical documents
- Batch supply management
What information is required for quotation?
Please provide:
- Quantity requirement
- Application information
- Destination country
- Packaging requirements
We will provide:
- Product confirmation
- Price proposal
- Production schedule
- Delivery information
Request a Quote for WIR212-39 Agricultural Bearing
For WIR212-39 wholesale or OEM inquiries, please send:
- Required quantity
- Current bearing information
- Equipment application
- Delivery requirements
We provide:
✔ Replacement confirmation
✔ Technical support
✔ Competitive quotation
✔ Stable supply planning
